ViaSite Quarry

About

HIGHLY VISIBLY SPEED DISPLAY FOR QUARRYING & MINING SITES

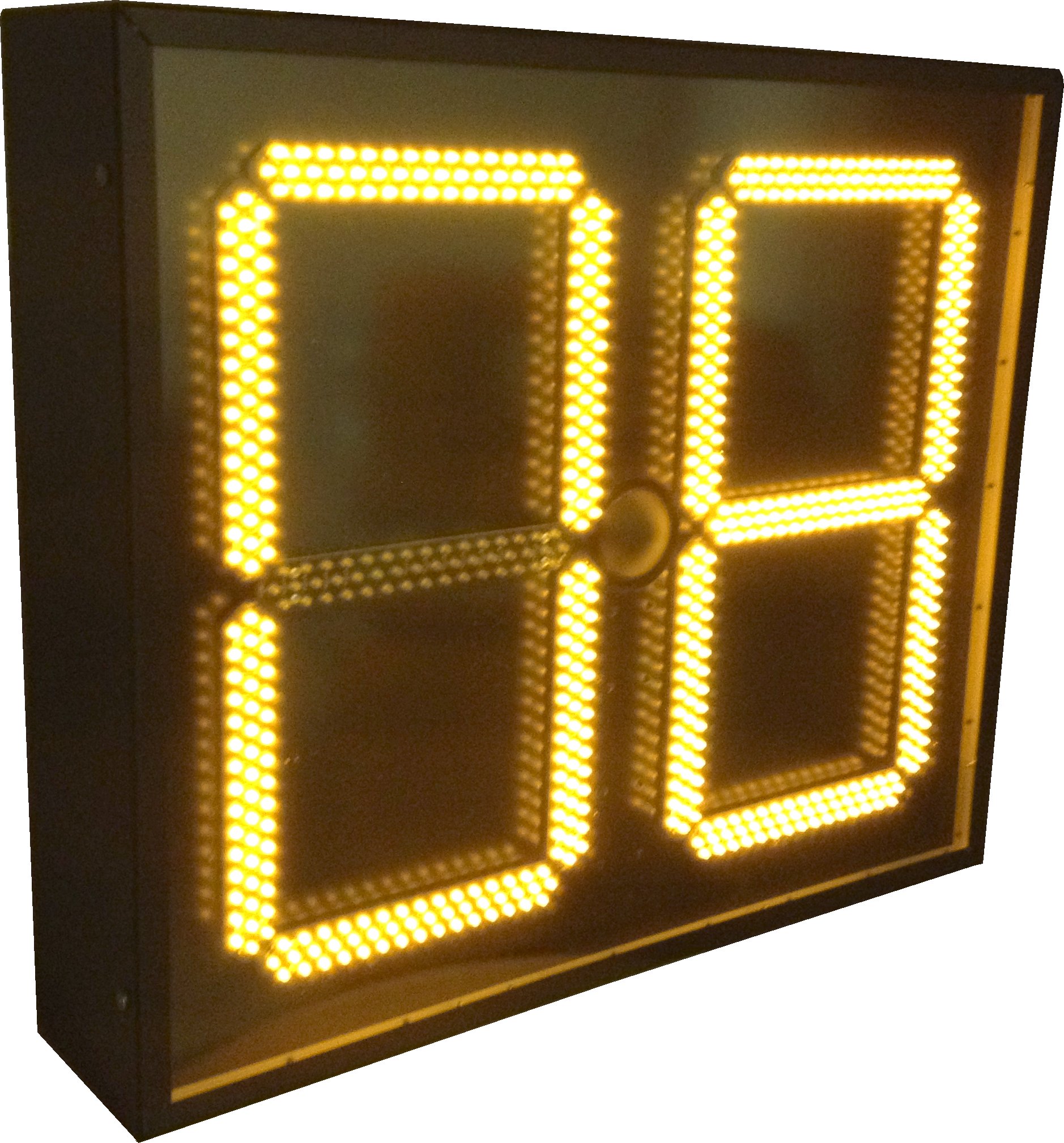

Onsite 60 Quarry is two digit speed display with two 60 cm high digits with optional 15-20 cm high LED texts to identify speed unit e.g. Km/h, KPH, MPH. Display has built in radar and power source. Optionally unit is available with rechargeable batteries or solar panels.

About

HIGHLY VISIBLY SPEED DISPLAY FOR QUARRYING & MINING SITES

Onsite 60 Quarry is two digit speed display with two 60 cm high digits with optional 15-20 cm high LED texts to identify speed unit e.g. Km/h, KPH, MPH. Display has built in radar and power source. Optionally unit is available with rechargeable batteries or solar panels. Automatic brightness adjustment adjusts LED brightness to fit in all lighting conditions and increases operating time when powered with battery or solar panel system.

Special “Traffic Light” specified LED is used to maximize visibility in all lighting conditions. Display will show speed to approaching target and flashes the speed if pre-set speed limit is exceeded. Speed limit, minimum and maximum speeds can be programmed to display by using control panel and LCD-screen.

CONTROL CENTRE INTERFACE ALLOWS AUDIBLE & VISUAL WARNINGS ON COMPUTER

Display can be also equipped with optional features like Control Centre Interface (CCI) and data collection. CCI function allows speed display to relay speed information either thru wired or wireless connection to computer screen in control centre. In the case of speed violation system will provide visual and audible warning allowing supervisor or safety manager to take immediate actions if necessary.

DATA COLLECTION FOR GATHERING STATISCIAL INFORMATION

Data collection option allows system to gather also speed, date and time information for statistical purposes. System gathers information not only from approaching targets, but resending targets as well. Data collection is valuable tool to find out months, days and times when speed violations are most likely to happen. This enables supervisors and safety managers to allocate resources for more intensive speed & safety control measures at the right time and location.

This information can be easily collected internally with SD-card based system. Optional GSM/GPRS –data transfer allows wireless data transfer for gathered speed data. Data collection function is included to Advance Control Centre Interface (ACCI). With ACCI it is also possible to change display & radar settings remotely as well.
